Product Code:
BS-5S
BANDSAW METAL 125MM 200X125MM CA SWIVEL
HEAD - 3 SPEED WITH 1/2HP MOTOR POWER.
BLADE SIZE:1727 X 12.5 X 0.65 P/N (B207)
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|

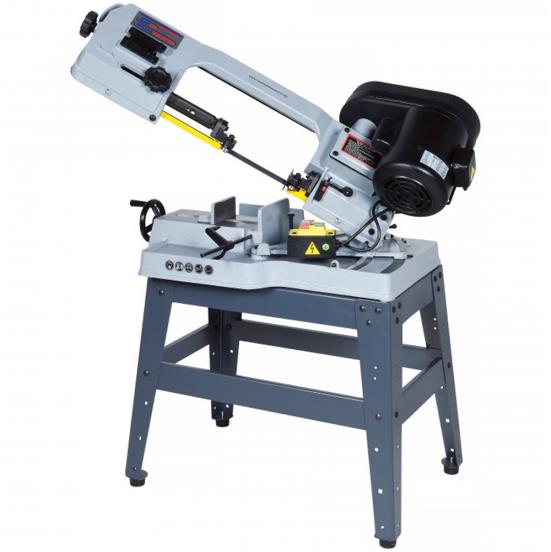

BS-5S METAL CUTTING BANDSAW (240V)
NOTE: RETRO FIT A HANDY OIL BOTTLE TO YOUR SAW WITH PART NO (P220)
1 LITRE BOTTLE HAS A FLEX FEED HOSE,MOUNTING BRACKETS & A ON/OFF TAP.
BLADE SIZE 1727MM X 13MM PART NO (B207)
THE BS-5S IS STEP UP FROM THE BS-4A & BS-5 SIMPLY BY THE UNIQUE DESIGNED OF THE SWIVEL HEAD ENABLES THE MATERIAL TO BE LOCATED IN ITS ORIGINAL CLAMPING POSITION, THEREFORE WHEN CUTTING LONG MATERIAL AT AN ANGLE IT WONT INTERFERE WITH OTHER ITEMS AROUND THE WORK SHOP.
THIS ECONOMICALLY PRICED METAL CUTTING BANDSAW INCORPORATES A WIDE AND ROBUST FOUR-LEGGED STAND CROSS BRACED WITH FOUR LEG SUPPORTS FOR ADDITIONAL STABILITY WHEN CUTTING LONGER AND HEAVIER MATERIAL. THE BALL BEARING GUIDED BLADE CAN BE DRIVEN AT A CHOICE OF THREE SPEEDS VIA A REDUCTION GEARBOX, DEPENDING ON THE TYPE OF MATERIAL BEING CUT AND THERE IS AN AUTOMATIC CUT-OFF, ADJUSTABLE FOR HEIGHT, FOR STOPPING THE MOTOR WHEN THE CUT IS COMPLETE.
ONE NOTABLE FEATURE ON THIS SAW IS IT SUPPLIED WITH AN ADDITIONAL WORK TABLE ENABLING THE OPERATOR TO USE THIS MACHINE IN A VERTICAL OPERATION, IDEAL FOR MAINTENANCE SHOPS, LIGHT STEEL FABRICATIONS, AND ENGINEERING WORKSHOPS. A WELL PRICED AND VERY EFFECTIVE MACHINE FOR CUTTING STEEL BARS, ANGLES, CHANNELS, TUBES AND SO ON.
FEATURES :
- 200 X 125MM (WIDTH X HEIGHT) RECTANGULAR CAPACITY
- IDEAL FOR CUTTING TUBE, PIPE, SOLID STEEL, NON-FERROUS AND WOOD
- 45º SWIVEL HEAD FOR EASY ANGLE CUTTING WITHOUT MOVING THE MATERIAL
- ADJUSTABLE SPRING TENSION SCREW REGULATING CUTTING FEED RATE
- FULLY-ADJUSTABLE BLADE ROLLER FOR ACCURATE AND STRAIGHT CUTTING
- ADJUSTABLE LENGTH STOP FOR REPETITION CUTTING
- 3-SPEED PULLEY DRIVE SYSTEM
- AUTOMATIC ELECTRIC CUT-OUT SWITCH
- VERTICAL CUTTING TABLE INCLUDED
- SEALED WORM AND PINION GEARBOX DRIVE
SPECIFICATIONS:
- MANUAL CUTTING HEAD BEAM
- SWIVEN HEAD OPERATION TYPE
- CUTTING CAPACITIES: ROUND: 90 DEGREES 125MM, 45 DEGREES 80MM; SQUARE: 90 DEGREES 125MM, SQUARE 75MM
RECTANGLE: WXH 90 DEGREES 200 X 125MM, 45 DEGREES 125 X 72MM
- 680MM TABLE WORKING HEIGHT
- 20-29-50M/MINUTE BLADE STEPS/SPEEDS
SHIPPING DIMENSIONS- 1070MM X 470MM X 440MM
|
