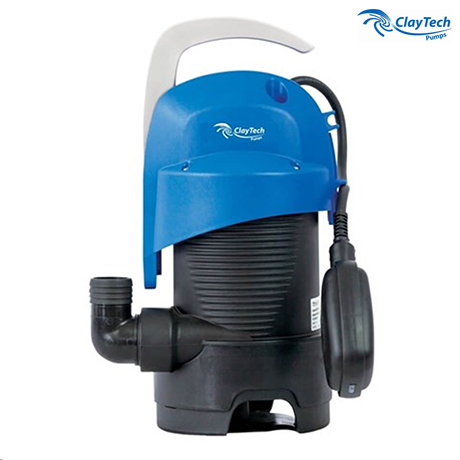

NLA* DRAINAGE PUMP DIRTY WATER 240V 440W
Click on image for larger photo
Product Code: CLA-ECOSUB7

DRAINAGE PUMP DIRTY WATER 240V 440WATT
MOTOR MAX HEAD 7 METRE-FLOW 140 LPM
MAX DEPTH 7 METRE 10 METRE LEAD
Border Image Border Image
Shop Price: $119.00
Web Price: $119.00  inc tax
Shipping charges may vary and are subject to change based on product dimensions and destination.

Availability: On Order
Quantity:
Weight: 6 KG
Border Image Border Image
ADJUSTABLE FREE PASSAGE
COMPACT
MANUAL AND AUTOMATIC MODE
PLUG & PLAY
DESIGNED IN ITALY

UP AND DOWN HANDLE FOR REMOVABLE INSTALLATION
TWO SLOTS FOR FLOAT SWITCH
POSSIBILITY TO CHANGE FREE PASSAGE: ONE PUMP OR TWO

P1 POWER CONSUMPTION: 440W
P2 POWER CONSUMPTION: 210W
VOLTAGE (V): 1 ~ 220-240 AC
FREQUENCY: 50HZ
CURRENT: 1.6AMP
CAPACITOR VC: 450

FLOW RATE MAX.: 140L/MIN
MAX. HEAD: 7M
MAX. IMMERSION DEPTH: 7M
MIN. DEPTH OF WATER FOR SWITCHING ON (AUT): 260MM
MIN./MAX. DEPTH FOR SWITCHING OFF: 100/150MM
LOW SUCTION CAPABILITY: 10MM

LENGTH OF POWER CABLE: 10M
CABLE: H05 RNF
PUMP INTERNAL PROTECTION: IP X8
INSUALTION CLASS: B
LIQUID RANGE TEMPERATURE: 0°C / +35°C
DIMENSION OF PARTICLES: Ø 30MM
MAX. AMBIENT TEMPERATURE: +40°C

L 205 X W 150 X H 245MM
L1: 166.6MM
LM: 187.4MM
WM: 123.5
DNM GAS:1"1/4F
DNA GAS: 1"1/4F
