 BALL TYPE BEARING PULLER 20-100MM CAP

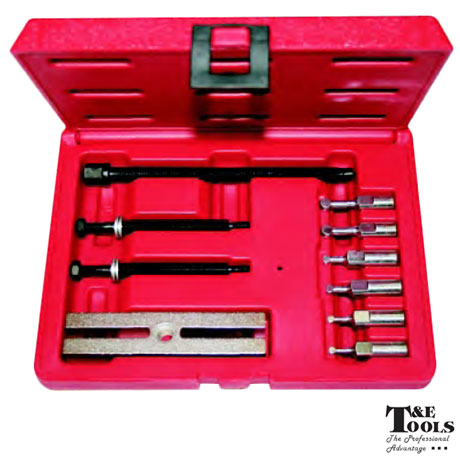

Click on image for larger photo
Product Code: 9631

BALL END TYPE BEARING EXTRACTOR SET 20
TO 100M CAP- SIZES 5.5MM-6MM-7.5MM PULL
BEARING BY DRILLING CAGE & INSERT BALL
Border Image Border Image
Shop Price: $139.00
Web Price: $139.00  inc tax

Availability: In Stock
Quantity:
Weight: 1.2 KG
Border Image Border Image
NOTE - THIS TYPE OF PULLER IS MADE FOR REMOVING BALL BEARING TYPE BEARINGS WHEN YOU CAN NOT GRAB THEM WITH A NORMAL PULLER FROM
INSIDE OR OUTSIDE THE SITUATION IS YOU HAVE A HOUSING ON THE OUTSIDE AND A SHAFT THROUGH THE BEARING,SO WITH THIS TYPE OF PULLER
YOU DRILL THE BEARING CAGE EACH SIDE OF THE BEARING PUSH THE BALL BEARING TO THE SIDE & THEN PICK THE RIGHT SIZE BALL END ( SAME SIZE AS THE BEARING BALL) AND INSERT THE BALL END SIDEWAYS THEN TURN IT TO TOCK IT INTO POSITION SCREW THE PULLER ARMS ON TO BALL END & SET YOUR PULLER UP THIS WILL GIVE YOU EVEN TENSION ON THE INNER & OUTER BEARING RINGS WHEN PULLING THE BEARING

THIS BEARING EXTRACTOR KIT CAN REMOVE BEARINGS WITHOUT THE NEED TO DISMANTLE MACHINERY OR REMOVE THE RUNNING SHAFT. POSITIVE SEATING ALLOWS AN EVEN TENSION ON THE INNER AND OUTER BEARING RINGS, REDUCING FRICTION AND RESISTANCE.

THREE PAIRS OF BALL TYPE EXTRACTOR HEADS ARE SUPPLIED.

CROSS BLOCK LENGTH: 4.3/8"(110MM)
MAIN PULLING RODS: 4"(100MM)
FORCING SCREW: 3/8"UNF X 24TPI X 6.3/8"(160MM) LONG
SPREAD: 1" TO 3.3/4"(25 TO 95MM)
REACH: 4.11/32"(110MM)
