Product Code:
JW6TWIN

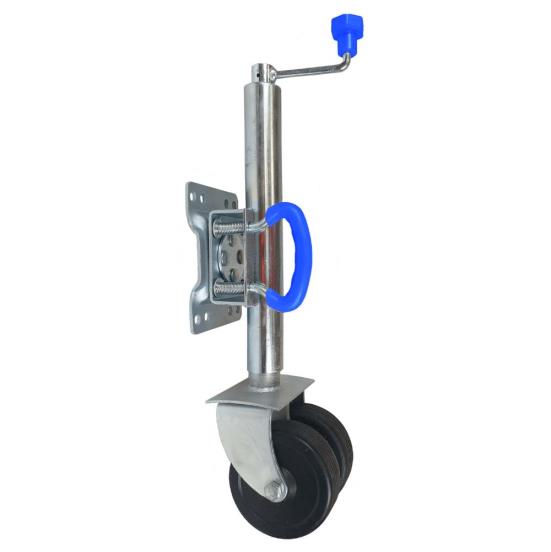

JOCKEY WHEEL 6" SWIVEL TWIN RUBBER TYRES
140MM SOLID RUBBER TYRES, 340KG RATED
MIN HEIGHT 205MM, MAX HEIGHT 660MM
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
JOCKEY WHEEL WITH SWIVEL BRACKET AND DUAL 140MM SOLID RUBBER TYRES
AN EFFECTIVE AID FOR HITCHING, UNHITCHING, LEVELLING AND MOVING OF TRAILERS, PNEUMATIC TYRE OFFERS SUPERIOR ROLLING MOVEMENT
340KG (750LBS) LOAD CAPACITY SUITABLE FOR USE ON LIGHT BOATS, EG. JET SKIS, TINNIES, ETC, LIGHT DUTY VEHICLE AND BOX TRAILERS
SPECIFICATIONS:
MINIMUM HEIGHT - 205MM
MAXIMUM HEIGHT - 660MM
EFFECTIVE LIFT - 270MM
UNIT WEIGHT - 7.0KG (16.5LBS)
LOAD CAPACITY- 340KG (750LBS)
MINIMUM AND MAXIMUM HEIGHTS ALTER DEPENDING ON THE WAY THE BRACKET IS MOUNTED
SPRING LOADED PULL CLAMP MECHANISM ALLOWS RELEASE OF PINS TO SWIVEL THE JOCKEY WHEEL VERTICAL TO HORIZONTAL, AS PER INSTURCTIONS ON THE SIDE OF THIS BOX
REPLACEMENT PARTS ALSO AVAILABLE
USAGE INSTRUCTIONS:
HITCHING: TO USE THE JOCKEY WHEEL AS AN AID IN HITCHING THE TRAILER, MANOEUVRE THE TRAILER SO THAT THE TRAILER'S HITCH (COUPLING) IS DIREDTLY OVER THE TOWING VEHICLE'S TOW BALL. TURN THE HANDLE CLOCKWISE TO LOWER THE JOCKEY WHEEL AND LOWER THE TONGUE HITCH ONTO THE TOW BALL. CONTINUE TURNING THE HANDLE UNTIL THE JOCKEY WHEEL IS FULLY RETRACTED AND THE COUPLING IS SEATED FIRMLY ON THE BALL CORRECGTLY. WIND THE HANDLE A FEW TURNS MORE SO THE JOCKEY WHEEL DOES NOT CARRY ANY WEIGHT FROM THE TRAILER AT ALL. PULL OUT THE PULL CLAMP AND SWING THE JOCKEY WHJEEL TO A POSITION PARALLEL TO THE TRAILER'S TONGUE. ALIGN THE PIN WITH THE HOLE INT HE SWING PLATE AND LOCK THE JOCKEY WHEEL IN POSITION.
LEVELLING AND MOVING: IN THE UNHITCHED MODE, THE TRAILER CAN BE LEVELLED OR ADJUSTED IN PITCH ANGLE BY TURNING THE HANDLE IN EITHER A CLOCKWISE OR ANTI-CLOCKWISE DIRECTION TO LENGTHEN OR SHORTEN THE HEIGHT OF THE JOCKEY WHEEL. IN THIS MODE THE TRAILER IS A THREE WHEELED VEHICLE THAT CAN BE MOVED FROM ONE POSITION TO ANOTHER, BUT ONLY WITH SUITABLE PRECUATUIONS AGAINST UNCONTROLLED MOVEMENT. IF THE TRAILER IS TO BE STORED INT HIS MODE, IS IS ADVISED THAT THE TRAILER WHEELS BE PROPERLY CHOCKED.
TOWING: WHILE THE TRAILER IS BEING TOWED, THE JOCKEY WHEEL MUST BE PIVOTED TO A HORIZONTAL POSITON AND LOCKED FIRMLY.
|
