Product Code:
K69059-1

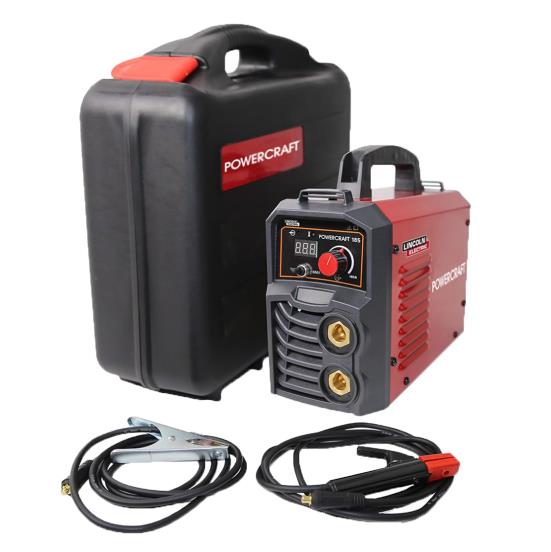

INVERTER WELDER185A ARC & TIG UNIT
15 AMP PLUG.RANGE 10-185 AMPS-POWERCRAF
185AMP STICK (MMAW) AND LIFT TIG (GTAW)
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
DESCRIPTION - LINCOLN POWERCRAFT
SMALL WELDING JOBS JUST BECAME MUCH SIMPLER WITH THE COMPACT AND HIGHLY PORTABLE POWERCRAFT 185 - THE 185AMP STICK (MMAW) AND LIFT TIG (GTAW) INVERTER WELDER (240V/15 AMP PLUG) THAT INCLUDES LINCOLN EZYSTRIKE TECHNOLOGY
- 185AMP STICK (MMAW) AND LIFT TIG (GTAW) INVERTER WELDER (240V/15 AMP PLUG)
- STICK AND LIFT TIG INVERTER WITH DIGITAL DISPLAY
- SUPERB ARC START USING THE LINCOLN EZYSTRIKE TECHNOLOGY MAKING STRIKING THE ARC WITH THE ELECTRODE EASY TIME AFTER TIME
- JUST TOUCH AND GO IT'S THAT EASY.
- READY TO WELD, INCLUDES WELDING CABLE, CLAMP, ELECTRODE HOLDER, SHOULDER STRAP, USER MANUAL WITH WELDING INSTRUCTIONS AND SUITCASE
- GENERATOR COMPATIBLE
- IDEAL FOR WELDING JOBS AROUND THE HOME, THE FARM, WORKSHOPS, OR WHERE GENERAL MAINTENANCE IS REQUIRED
SPECIFICATIONS:
- INPUT (V): 230V AC ± 15%
- FUSE SIZE (A): 15 A
- OUTPUT RANGE (A): 10-185 A
- RATED OUTPUT (A / V / DUTY CYCLE): 180A/27.2V@15%
- PROCESSES: STICK (MMAW), LIFT TIG (GTAW) STICK (MMAW), LIFT TIG (GTAW)
- INSULATION / PROTECTION CLASS: IP21S
- ELECTRODES: UP TO 4.0MM
GENERATOR REQUIREMENTS:
- OUTPUT: >9.5 KVA
- OUTPUT RANGE: 180-260 V
- PEAK MAX: 367 VOLTS
- FREQUENCY: 50-60HZ
INCLUDES:
- 1 X WELDING CABLE
- 1 X CLAMP
- 1 X ELECTRODE HOLDER
- 1 X SHOULDER STRAP
- 1 X USER MANUAL WITH WELDING INSTRUCTIONS
- 1 X SUITCASE
|
