Product Code:
QJACB006

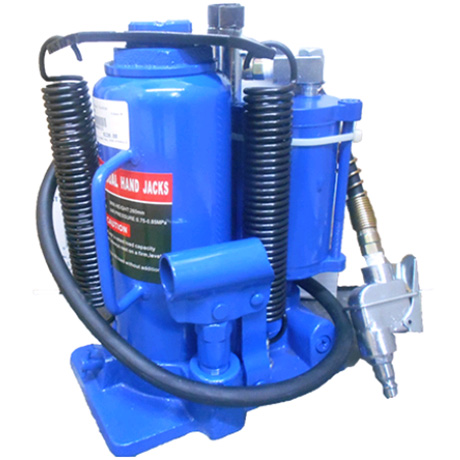

BOTTLE JACK 12 TONNE TALL AIR HYDRAULIC
SPRING RETURN. MIN HEIGHT 260MM RAM
TRAVEL 170MM MAX HEIGHT 510MM 80-110PSI
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
BOTTLE JACK 12 TONNE TALL AIR/HYDRAULIC OPPERATED
MAX HEIGHT 510MM
MIN HEIGHT 260MM
SCREW ADJUSTMENT 80MM
RAM TRAVEL 170MM
SCREW TOP DIAMETER 45MM
JACK HAS SPRING RETURN
BASE SIZE IS 200MM X 110MM
HOSE IS 1/4 LENGTH IS 1200MM WITH NITTO AIR FITTING
CAN BE OPPERATED MANUALLY WITH A JACK HANDLE ALSO
SAFETY PRECAUTIONS -
WARNING: FAILURE TO HEED THE FOLLOWING WARNINGS CAN RESULT IN PERSONAL INJURY AND/OR EQUIPMENT DAMAGE.THESE WARNINGS CANNOT COVER EVERY SITUATION, SO HAVE SAFETY FOREMOST IN YOUR MIND WHEN SETTING UP A JOB.
- READ, UNDERSTAND AND FOLLOW THE OPERATING INSTURCTIONS AND THE ANSI B30.1 AND ASME PALD-1 SAFETY STANDARDS FOR JACKS. IF THE OPERATOR CANNOT READ ENGLISH, OPERATING INSTURCTIONS AND SAFETY PRECAUTIONS MUST BE READ AND DISCUSSED IN THE OPERATOR'S NATIVE LANGUAGE.
- WEAR EYE PROTECTION THAT MEETS THE REQUIREMENTS OF ANSI Z87.1 AND OSHA.
- INSPECT THE JACK BEFORE EACH USE; DO NOT USE THE JACK IF IT IS DAMAGED, ALTERED, OR IN POOR CONIDITION.
- TO PREVENT TIPPING, SET UP THE JACK ON A HARD, LEVEL SURFACE. SET VEHICLE PARKING BRAKE AND BLOCK TYRES.
- THE LOAD MUST NOT EXCEED THE RATED LIFTING CAPACITY OF THE JACK. LIFT ONLY DEAD WEIGHT.
- CENTER THE LOAD ON THE JACK SADDLE, BECAUSE OFF-CENTRE LOADS CAN DAMAGE SEALS AND CAUSE HYDRAULIC FAILURE.
- USE THE JACK FOR LIFTING PURPOSES ONLY. THIS JACK IS DESIGNED TO LIFT LOADS, NOT SUPPORT LOADS. IMMEDIATELY SUPPORT A LIFTED LOAD WITH JACK STANDS.
- STAY CLEAR OF LIFTED LOADS.
- USE ONLY APPROVED HYDRAULIC FLUID, SUCH AS CHEVRON AW HYDRAULIC OIL MV OR EQUIVALENT.
OPERATING INSTRUCTIONS -
TO RAISE THE JACK, USE NARROW END OF JACK HANDLE TO TIGHTEN RELEASE VALVE CLOCKWISE (CW). INSERT HANDLE INTO SOCKET AND OPERATE PUMP. TO LOWER THE JACK, SLOWLY OPEN THE RELEASE VALVE KNOB BY TURNING IT COUNTERCLOCKWISE (CCW).
|
