Product Code:
MR907826005-1
WELDER BOBCAT 265X ARCREACH 265A
PETROL KOHLER 23.5HP ENGINE 41.6L FUEL
CAPACITY WITH REMOTE START FUNCTION
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|

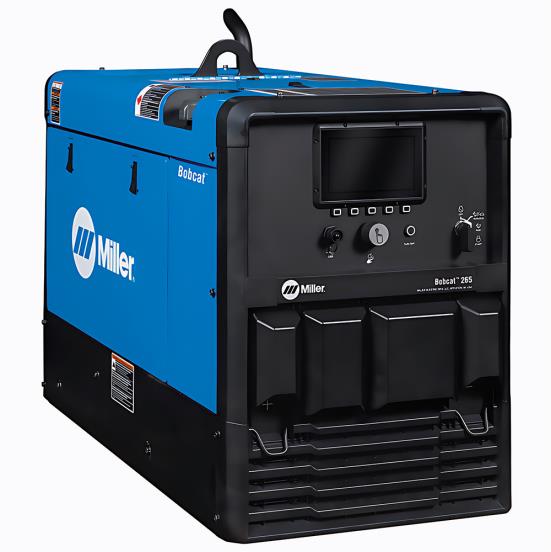

MILLER NEXT-GENERATION BOBCAT 265
THE BOBCAT 265 IS POWERED BY A TWIN CYLINDER KOHLER® 23.5 HORSE POWER CH730 GASOLINE ENGINE, AND HAS AN 11 GALLON FUEL CAPACITY.
OUR ACCU-RATED 11,000 WATTS OF USABLE PEAK POWER IS DELIVERED FOR A MINIMUM OF 30 SECONDS. ACCU-RATED MEANS PEAK POWER IS USABLE FOR MAXIMUM GENERATOR LOADS SUCH AS PLASMA CUTTING, MILLERMATIC® MIG WELDERS AND MOTOR STARTING.
THE NEXT-GENERATION BOBCAT 265 DELIVERS LEGENDARY DEPENDABILITY WITH ENHANCED FEATURES FOR SUPERIOR PERFORMANCE, EASE OF USE, AND PORTABILITY, WITH SMOOTH, STABLE ARCS, AUTO-SET TECHNOLOGY FOR FAST AND ACCURATE WELD SETUP, AND A DIGITAL INTERFACE FOR SIMPLIFIED OPERATION, IT'S DESIGNED TO HANDLE DIVERSE WELDING TASKS EFFORTLESSLY.
ITS LIGHTER, MORE COMPACT DESIGN 100 LBS (45 KG) LIGHTER AND 13% SMALLER THAN PREVIOUS MODELS?MAKES IT EASY TO TRANSPORT, WHILE FULL AUXILIARY POWER ENSURES CONSISTENT TOOL OPERATION WITHOUT POWER SPIKES.
OPTIONAL FEATURES LIKE ARCREACH TECHNOLOGY AND BATTERY CHARGE/CRANK ASSIST BOOST PRODUCTIVITY AND CONVENIENCE. POWERED BY A 23.5 HP KOHLER ENGINE, THE BOBCAT 265 IS IDEAL FOR FABRICATION, FIELD WELDING, AND INDUSTRIAL APPLICATIONS, MAKING IT THE ULTIMATE CHOICE FOR PROFESSIONALS SEEKING RELIABILITY AND INNOVATION.
FEATURES:
- SMOOTH, STABLE ARCS FOR SUPERIOR STICK WELDING PERFORMANCE
- AUTO-SET TECHNOLOGY FOR FAST AND ACCURATE WELD PARAMETER SETUP
- DIGITAL INTERFACE FOR SIMPLIFIED OPERATION AND QUICK SETUP
- LIGHTER AND MORE COMPACT DESIGN 100 LBS (45 KG) LIGHTER AND 13% SMALLER
- FULL AUXILIARY POWER WITH NO SPIKES FOR CONSISTENT TOOL OPERATION
- REMOTE START/STOP TO REDUCE IDLING, FUEL COSTS, AND NOISE
- OPTIONAL ARCREACH TECHNOLOGY FOR PARAMETER ADJUSTMENTS AT THE WELD JOINT
- OPTIONAL BATTERY CHARGE/CRANK ASSIST FOR RELIABLE DC OUTPUT
- 23.5 HP KOHLER ENGINE FOR POWERFUL, RELIABLE PERFORMANCE
- IDEAL FOR FABRICATION, FIELD WELDING, AND INDUSTRIAL APPLICATIONS
SPECIFICATIONS:
- AMPERAGE RANGE: 20 A - 265 A
- WELD OUTPUT: CC/DC STICK/TIG 265 A AT 27 V, 100% DUTY CYCLE, CV/DC MIG/FCAW 265 A AT 27 V, 100% DUTY CYCLE
- WELDABLE METALS: ALUMINUM, STAINLESS STEEL, STEEL
- CURRENT TYPE: DC
- RATED CARBON DIAMETER: 3/16 IN (4.8 MM)
- AUXILIARY POWER: 9500 W CONTINUOUS, 11,000 W PEAK
- ENGINE: 23.5 HP KOHLER, GASOLINE-POWERED
- ENGINE SPEEDS: IDLE - 2400 RPM, WELD - 3600 RPM
- FUEL TANK SIZE: 11 GALLONS (41.6 LITERS)
- PORTABILITY: STANDARD LIFT EYE; OPTIONAL RUNNING GEAR OR TRAILER
- SOUND RATING: 64 DB @ IDLE, 73 DB @ WELD
- DIMENSIONS: 51 CM W X 67 CM H X 94 CM L
- NET WEIGHT: 382 LBS (173 KG)
DIMENSIONS:
- H: 673MM
- H: 792MM (TO TOP OF EXHAUST)
- W: 511MM
- D: 941MM
NET WEIGHT:
- 173KG
ENGINE SPECIFICATION:
ENGINE BRAND AND WARRANTY
- KOHLER CH730, 3 YEAR WARRANTY
- HORSEPOWER (HP) AT 3,600 RPM
- GAS: 23.5 HP
- TYPE: TWIN-CYLINDER, FOUR-CYCLE OVERHEAD VALVE, INDUSTRIAL AIR-COOLED, GASOLINE
- WELD SPEED: 3,600RPM
- IDLE SPEED: 2,400RPM
- FUEL CAPACITY: 41.6L
- OIL CAPACITY: 1.6-1.8L
- LOW OIL PRESSURE SHUTDOWN
|
