Product Code:
W1006185
TRANSMIG WELDER 185 ULTRA TIG/MIG/STICK
ULTRA 3-IN-1 MIG STICK & TIG WELDER
10AMP PLUG, 240V CIGWELD FULL SYNERGIC!!
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
CIGWELD W1006185 TRANSMIG 185 ULTRA 3-IN-1 MIG STICK & TIG WELDER
THE CIGWELD TRANSMIG 185 ULTRA FEATURES AN IMPRESSIVE AUTO SET FUNCTION THAT ALLOWS THE USER TO WELD LIKE A PRO WITH NO PREVIOUS WELDING EXPERIENCE NECESSARY.
SIMPLY SELECT THE MATERIAL TYPE, THICKNESS & CONSUMABLE DIAMETER AND AUTO SET WILL PRE-SET THE WIREFEED SPEED (AMPERAGE) AND VOLTAGE (MIG) ALONG A PRE-PROGRAMMED SYNERGIC LINE. EXPERIENCED WELDERS CAN THEN CUSTOMISE THEIR SETTINGS BY TWEAKING THEIR WIRE SPEED AND VOLTS ACCORDING TO THEIR TECHNIQUE AND OTHER FACTORS. THE AUTO SET FUNCTION IS AVAILABLE IN ALL 3 PROCESSES: MIG, STICK AND TIG!
EASILY RETURN TO YOUR PREVIOUS WELD THANKS TO A SOPHISTICATED MEMORY FUNCTION OR SAVE UP TO 9 OF YOUR FAVOURITE WELD SETTINGS!
THE 185 ULTRA COMES WITH AN INTEGRATED WIRE FEEDER THAT HOLDS UP TO A 200MM SPOOL, AND BOASTS A RANGE OF PROFESSIONAL FEATURES TO ENSURE OPTIMAL WELDING RESULTS:
- BURNBACK CONTROL
- ARC CONTROL
- 2T/4T
- SPOT/STITCH WELD
- PRE/POST FLOW
- UP/DOWN SLOPE
- ARC FORCE
- HOT START
- ANTI-STICK
- VRD (APPLICABLE IN STICK MODE ONLY
MOST IMPORTANTLY THE 185 ULTRA IS FITTED WITH A 10AMP PLUG, ALLOWING YOU THE FLEXIBILITY TO PLUG AND PLAY ANYWHERE IN YOUR HOME OR WORKSHOP. THE POWER SOURCE WEIGHS JUST OVER 17KG, MAKING THE ULTRA PORTABLE AND IDEAL FOR ANY HOME OR JOB SITE. THE ULTRA IS FULLY COMPLIANT TO AUSTRALIAN STANDARD AS 60974.1 AND IEC 60974.1 SO YOU KNOW YOU HAVE A SAFE PRODUCT YOU CAN TRUST!
INCLUDES:

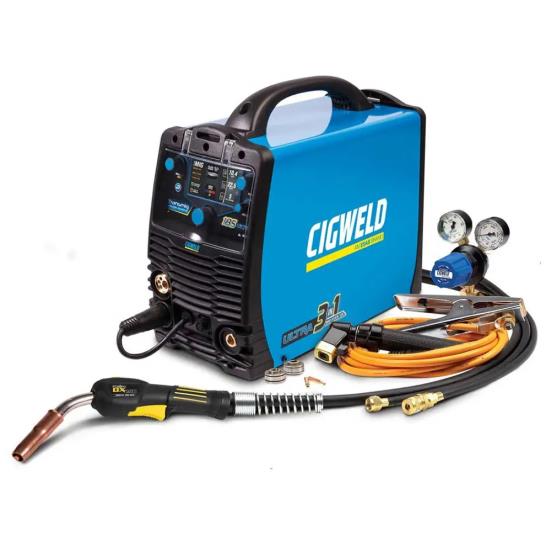

- 1 X TRANSMIG 185 ULTRA POWER SOURCE
- 1 X TWECO FUSION DX250 MIG TORCH, 3M
- 1 X COMET PROFESSIONAL ARGON REGULATOR/FLOWMETER
- 3 X FEED ROLLS: 0.8/0.9MM V GROOVE (FITTED), 1.0/1.2MM U GROOVE, 0.8/0.9MM V KNURLED
- 3 X CONTACT TIPS: 0.8MM (FITTED); 0.9MM; 1.0MM
- 1 X TWISTLOCK ELECTRODE HOLDER WITH 4M LEAD
- 1 X WORK CLAMP WITH 4M LEAD
- 1 X SHIELDING GAS HOSE ASSEMBLY - QUICK CONNECT
- 1 X SHOULDER STRAP
FEATURES:
TWECO DX250 DIGITAL MIG GUN COMES STANDARD WITH ALL 185 ULTRA MACHINES:
- REMOTE OPERATION OF YOUR WIREFEED SPEED AND VOLTS
- CONTROL FROM THE PALM OF YOUR HAND
- EURO CONNECTION, 3M LEAD
- 4.3" FULL COLOUR LCD SCREEN
- INTERACTIVE DIGITAL CONTROLS
- SIMPLE TO NAVIGATE INTERFACE WITH LARGE CONTROL KNOBS
- PROTECTED BY A RECESSED PANELLING, A SCREEN PROTECTOR AND A FLIP-UP DISPLAY COVER
- ON-SCREEN DIGITAL SET UP GUIDES
- 9 X MEMORY PRE-SETS
- SUITABLE FOR WELDING IN CATEGORY C ENVIRONMENTS
- SUITABLE FOR INDOOR AND OUTDOOR WELDING
SPECIFICATIONS:
- NUMBER OF PHASES: SINGLE PHASE
- NOMINAL SUPPLY VOLTAGE: 240 VAC ± 15%
- NOMINAL SUPPLY FREQUENCY: 50 / 60HZ
- FACTORY FITTED SUPPLY PLUG RATING: 10 AMPS
- EFFECTIVE INPUT CURRENT: 9.5 AMPS
- MAXIMUM INPUT CURRENT (I1MAX): 30 AMPS
- MINIMUM SINGLE-PHASE GENERATOR: 10KVA (AT 0.8 POWER FACTOR)
- RECOMMENDATION: 8KW (AT 1.0 POWER FACTOR)
- OUTPUT TERMINAL TYPE: DINSE: STYLE 50
- PROTECTION CLASS: IP23S
CURRENT RANGE:
- MIG: 30-180A
- STICK: 10-185A
- TIG: 10-185A
DUTY CYCLE:
- MIG: 185A @ 20%
- STICK: 185A @ 15%
- TIG: 185A @ 20%
- DIMENSIONS (L X W X H): 520MM X 220MM X 420MM
- WEIGHT (POWER SOURCE ONLY): 17.4KG
- WEIGHT (PLANT): 30KG
WARRANTY:
- 3 YEAR WARRANTY COVERED BY CIGWELD AUSTRALIA
FREIGHT DIMENSION 630MM X 370MM X 470MM
|
