Product Code:
RAM12SF

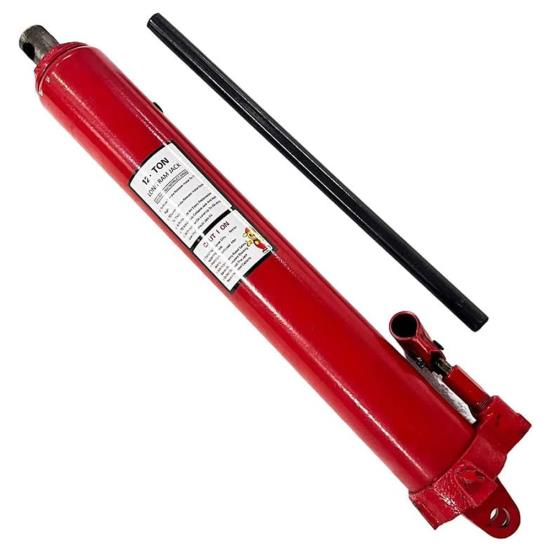

LONG RAM 12 TON FOR 3 TONNE SHOP CRANE
LENGTH OF RAM 620MM WILL EXTEND 360MM
CLEVIS PIN MOUNTON BASE PIN MOUNT AT TOP
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
LONG RAM JACK 12 TON FOR 3 TONNE SHOP CRANE
- BOTTOM YOKE WIDTH 26MM WITH 17MM HOLE ( CAN VARY??)
- SHAFT DIAMETER 28MM WITH A 17MM HOLE FOR MOUNTING
DESCRIPTION:
IDEAL FOR USE ON HYDRAULIC CRANES AND ENGINE HOISTS. BAKED ENAMEL FINISH.
CAN ALSO BE OPPERATED WITH NORMAL JACK
- HYDRAULIC CAPACITY - 8000KG
- WITH CLEVIS BASE
- MAXIMUM RAM LENGTH BETWEEN HOLES 1140MM (APPROX)
- CLOSED HEIGHT: 645MM (APPROX)
- STROKE: 495MM
- BOTTOM YOKE WIDTH 26MM WITH 17MM HOLE ( CAN VARY??)
- SHAFT DIAMETER 28MM WITH A 17MM HOLE FOR MOUNTING
NOTE: USE WITH IN THE LIMITS OF THE GEAR YOUR FITTING IT TO !!!!
SAFETY PRECAUTIONS -
WARNING: FAILURE TO HEED THE FOLLOWING WARNINGS CAN RESULT IN PERSONAL INJURY AND/OR EQUIPMENT DAMAGE.THESE WARNINGS CANNOT COVER EVERY SITUATION, SO HAVE SAFETY FOREMOST IN YOUR MIND WHEN SETTING UP A JOB.
- READ, UNDERSTAND AND FOLLOW THE OPERATING INSTURCTIONS AND THE ANSI B30.1 AND ASME PALD-1 SAFETY STANDARDS FOR JACKS. IF THE OPERATOR CANNOT READ ENGLISH, OPERATING INSTURCTIONS AND SAFETY PRECAUTIONS MUST BE READ AND DISCUSSED IN THE OPERATOR'S NATIVE LANGUAGE.
- WEAR EYE PROTECTION THAT MEETS THE REQUIREMENTS OF ANSI Z87.1 AND OSHA.
- INSPECT THE JACK BEFORE EACH USE; DO NOT USE THE JACK IF IT IS DAMAGED, ALTERED, OR IN POOR CONIDITION.
- TO PREVENT TIPPING, SET UP THE JACK ON A HARD, LEVEL SURFACE. SET VEHICLE PARKING BRAKE AND BLOCK TYRES.
- THE LOAD MUST NOT EXCEED THE RATED LIFTING CAPACITY OF THE JACK. LIFT ONLY DEAD WEIGHT.
- CENTER THE LOAD ON THE JACK SADDLE, BECAUSE OFF-CENTRE LOADS CAN DAMAGE SEALS AND CAUSE HYDRAULIC FAILURE.
- USE THE JACK FOR LIFTING PURPOSES ONLY. THIS JACK IS DESIGNED TO LIFT LOADS, NOT SUPPORT LOADS. IMMEDIATELY SUPPORT A LIFTED LOAD WITH JACK STANDS.
- STAY CLEAR OF LIFTED LOADS.
- USE ONLY APPROVED HYDRAULIC FLUID, SUCH AS CHEVRON AW HYDRAULIC OIL MV OR EQUIVALENT.
OPERATING INSTRUCTIONS -
TO RAISE THE JACK, USE NARROW END OF JACK HANDLE TO TIGHTEN RELEASE VALVE CLOCKWISE (CW). INSERT HANDLE INTO SOCKET AND OPERATE PUMP. TO LOWER THE JACK, SLOWLY OPEN THE RELEASE VALVE KNOB BY TURNING IT COUNTERCLOCKWISE (CCW).
|
