Product Code:
LHJ35

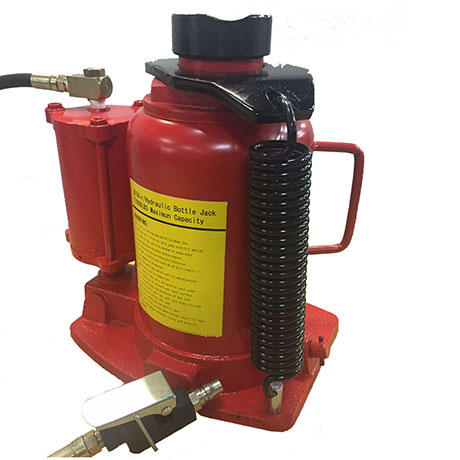

AIR HYDRAULIC BOTTLE JACK 35 TONNE
MIN.HT 275MM MAX.HT 435MM RAM TRAVEL 160
PNEUMATIC OVER HYDRAULIC OPERATION
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
35 TONNE AIR HYDRAULIC BOTTLE JACK
AIR HOSE LENGTH IS 1300MM WITH NITTO FITTING
SPRING RETURN
* 35 TON AIR HYDRAULIC BOTTLE JACK
* PNEUMATIC OVER HYDRAULIC OPERATION
* RAM TRAVEL: 160MM
* MINIMUM HEIGHT: 275MM
* MAXIMUM HEIGHT: 435MM
* NW: 21KG
* AIR INLET: 1/4?? BSP
* OPERATING AIR PRESSURE: 90-100PSI
PRODUCT DESCRIPTION
THIS 35 TON AIR BOTTLE JACK FEATURES PNEUMATIC OVER HYDRAULIC OPERATION MAKING IT BOTH SAFER AND EASIER TO USE THAN ORDINARY JACKS.
THIS HEAVY-DUTY 35 TON AIR BOTTLE JACK IS IDEALLY SUITED FOR WORKSHOP OR INDUSTRIAL USE AND CAN OPERATE AT FULL CAPACITY OFF OF MOST PORTABLE AIR COMPRESSORS.
AND NOT ONLY DOES THIS 35 TON BOTTLE JACK FEATURE A HIGH PERFORMANCE PNEUMATIC PUMP,
YOU CAN ALSO OPERATE IT MANUALLY USING THE HYDRAULIC PUMP TRULY MAKING IT PERFECT FOR PROFESSIONAL GRADE USE IN A WORKSHOP.
SAFETY PRECAUTIONS -
WARNING: FAILURE TO HEED THE FOLLOWING WARNINGS CAN RESULT IN PERSONAL INJURY AND/OR EQUIPMENT DAMAGE.THESE WARNINGS CANNOT COVER EVERY SITUATION, SO HAVE SAFETY FOREMOST IN YOUR MIND WHEN SETTING UP A JOB.
- READ, UNDERSTAND AND FOLLOW THE OPERATING INSTURCTIONS AND THE ANSI B30.1 AND ASME PALD-1 SAFETY STANDARDS FOR JACKS. IF THE OPERATOR CANNOT READ ENGLISH, OPERATING INSTURCTIONS AND SAFETY PRECAUTIONS MUST BE READ AND DISCUSSED IN THE OPERATOR'S NATIVE LANGUAGE.
- WEAR EYE PROTECTION THAT MEETS THE REQUIREMENTS OF ANSI Z87.1 AND OSHA.
- INSPECT THE JACK BEFORE EACH USE; DO NOT USE THE JACK IF IT IS DAMAGED, ALTERED, OR IN POOR CONIDITION.
- TO PREVENT TIPPING, SET UP THE JACK ON A HARD, LEVEL SURFACE. SET VEHICLE PARKING BRAKE AND BLOCK TYRES.
- THE LOAD MUST NOT EXCEED THE RATED LIFTING CAPACITY OF THE JACK. LIFT ONLY DEAD WEIGHT.
- CENTER THE LOAD ON THE JACK SADDLE, BECAUSE OFF-CENTRE LOADS CAN DAMAGE SEALS AND CAUSE HYDRAULIC FAILURE.
- USE THE JACK FOR LIFTING PURPOSES ONLY. THIS JACK IS DESIGNED TO LIFT LOADS, NOT SUPPORT LOADS. IMMEDIATELY SUPPORT A LIFTED LOAD WITH JACK STANDS.
- STAY CLEAR OF LIFTED LOADS.
- USE ONLY APPROVED HYDRAULIC FLUID, SUCH AS CHEVRON AW HYDRAULIC OIL MV OR EQUIVALENT.
OPERATING INSTRUCTIONS -
TO RAISE THE JACK, USE NARROW END OF JACK HANDLE TO TIGHTEN RELEASE VALVE CLOCKWISE (CW). INSERT HANDLE INTO SOCKET AND OPERATE PUMP. TO LOWER THE JACK, SLOWLY OPEN THE RELEASE VALVE KNOB BY TURNING IT COUNTERCLOCKWISE (CCW).
|
