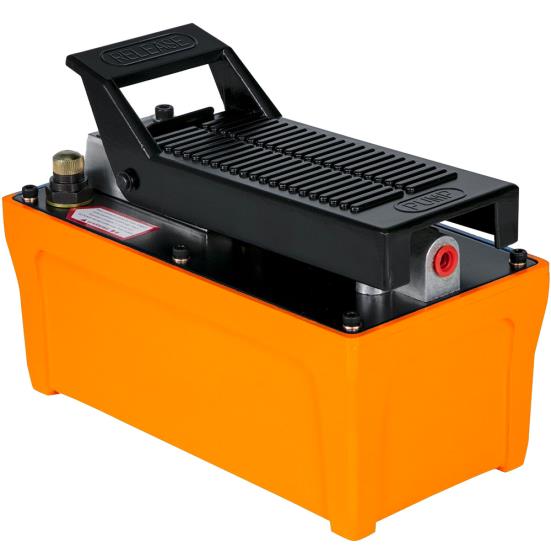

AIR HYDRAULIC FOOT PUMP 1.6 LITRE TANK
OUTPUT OIL HOLE 3/8NPTF INTAKE 1/4NPT
ABS TANK-1.3 LITRE OUTPUT NO HOSES !!!!
Border Image Border Image
Shop Price: $399.00
Web Price: $399.00  inc tax

Availability: In Stock
Quantity:
Weight: 8 KG
Border Image Border Image
STEEL FOOT PEDAL OPERATIONAL ON A POLY TANK

NOTE BARE UNIT ONLY NO HOSES !!!!!!!!

THIS UNIT CAN BE USED WITH PRESSES,RAMS & HYDRAULIC TOOLS

USABLE OUTPUT OIL CAPACITY 1.6 LITRE
PRESSURE 10000 PSI AIR PRESSURE IS 100:1 SO AT A 100 PSI THE PUMP WILL DO 10000 PSI
INPUT PRESSURE 90-175 PSI THIS UNIT HAS A INTERNAL LOAD LIMITING DEVICE
HOSE OUTLET PORT THREAD IS 3/8 18NPT FEMALE
AIR HOSE INLET PORT 1/4 18NPT FEMALE ALSO HAS A AIR EXHAUST MUFFLER FOR QUITE PUMPING OF AIR MOTOR
WEIGHT WITH FLUID 9.07KG (20LBS)

THE HOSE FITTINGS FOR THIS HYDRAULIC AIR PUMP TANK ARE
AIR OUTPUT HOSE ON PUMP IS 3/8 NPT FEMALE THREAD
HYDRAULIC HOSE OUTLET ON PUMP IS 3/8 NPT FEMALE THREAD

THIS AIR/HYDRAULIC PUMP SUPPLIES HYDRAULIC FLUID PRESSURE TO SELECTED TOOLS. IT CONSISTS OF AN IN-LINE AIR AND HYDRAULIC CYLINDER. THE RATIO OF HYDRAULIC FLUID PRESSURE GENERATED COMPARED TO SUPPLY AIR PRESSURE IS 100:1.
(100PSI OUT FOR EVERY 1PSI IN - 100 PSI INPUT AIR PRESSURE EQUALS 10 000 OUTPUT PRESSURE)

WARNING - THE AIR/HYDRAULIC PUMP IS CAPABLE OF GENERATING FLUID PRESSURE UP TO 10 000 PSI. MAKE CERTAIN THE TOOL IN USE IS HELD SECURELY AND IS IN PROPER WORKING CONDITION. DO NOT CONTINUE TO OPERATE THE PUMP ONCE THE WORK IS COMPLETED. FAILURE TO COMPLY WITH THESE INSTRUCTIONS COULD RESULT IN PERSONAL INJURY OR DAMAGE TO THE EQUIPMENT.

BEFORE USE - TO PREVENT OIL LEAKAGE DURING SHIPMENT, A SHIPPING PLUG IS USED TO ENSURE THE BEST SEALING FUNCTION. REMOVE THE SHIPPING OIL PLUG AND REPLACE IT WITH THE VENTED OIL PLUG PROVIDED.

NOTE - ALWAYS SECURE THREADED PORT CONNECTION WITH NON HARDENING PIPE THREAD COMPOUND. TIGHTEN SECURELY TO PREVENT ACCIDENTAL REMOVAL OF COMPONANTS WHILE IN USE. TAKE CARE NOT TO INTRODUCE COMPOUND INTO PORT ORIFICES. FAMILIARIZE YOURSELF WITH THE SPECIFICATION AND ILLUSTRATIONS IN THE OPERATING MANUAL. KNOW YOUR PUMP, IT'S LIMITATIONS AND HOW IT OPERATES BEFORE ATTEMPTING TO USE. REFER TO SPECIFICATION CHART ON ABOVE FOR DETAILS OF OIL PORT THREAD SIZE, USEABLE OIL CAPACITY AND MORE.

OPERATION - OPERATION OF THE UNIT IS AS FOLLOWS:
- CONNECT THE HOSE OF THE AIR/HYDRAULIC PUMP TO THE HYDRAULIC COUPLING OF THE SELECTED TOOL.
- CONNECT THE AIR SUPPLY LINE TO THE AIR/HYDRAULIC PUMP. AIR SUPPLY SHOULD BE 5-10CFM AT 100 PSI TO OBTAIN PROPER OPERATING CHARACTERISTICS. IN ADDITION, THE AIR LINE SHOULD BE EQUIPPED WITH AN AIR FILTER.
- STEPPING ON THE PUMP END OF THE PEDAL ENGAGER WILL PRODUCE THE FORCE NECESSARY TO RUN THE TOOL.
- DEPRESSING THE RELEASE END OF THE PUMP PEDAL WILL RELEASE THE PRESSURE.

NOTE: WHEN USING 10,000 LBS HIGH PRESSURE HYDRAULICS, EXTREME CARE MUST BE TAKEN WHEN ADAPTING HOSES AND FITTINGS TO THE PUMPS AND RAMS. BECAUSE OF THE HIGH PRESSURE, WHEN USING ADAPTORS TO FIT HOSES TO THE RAMS WE STRONGLY RECOMMEND YOU USE STEEL HIGH PRESSURE FITTINGS BECAUSE BRASS FITTINGS CAN ONLY TAKE UP TO 500PSI & WILL FAIL OR LEAK. A RANGE OF THESE STEEL FITTINGS CAN BE FOUND UNDER (PORTA POWER - FITTINGS) ON OUR WEBSITE UNDER THE ( HYDRAULICS - AGRI ) HEADING.

SOME OF THE MOST USED HIGH PRESSURE FITTINGS ARE:

PART NUMBER (30-PRB-06-04N-SS) 3/8 X 1/4 NPT STAINLESS STEEL REDUCER.
PART NUMBER (T9790) 1/4 X 3/8 NPT STAINLESS STEEL REDUCER.
PART NUMBER (T9791) 3/8 X 1/4 NPT STEEL MALE ADAPTOR.

RAMS WITH USA OR OTC STYLE COUPLING 10000 PSI PRESSURE THREAD 3/8NPT

NOTE: OTC USA HYDRAULIC FITTINGS FEMALE FITTING ON HYDRAULIC RAM PART NO (9796) THE OTC USA FEMALE FITTING
TO SUIT (9796) ON THE END THE HYDRAULIC HOSE IS PART NO (9798) IF MALE & FEMALE USA FITTINGS ARE
REQUIRED PART NO IS (9796/9798)

RAMS WITH ASAIN FITTINGS 10000 PSI PRESSURE THREAD 1/4 NPT

NOTE: ASAIN FITTINGS ARE SMALLER SIZE THAN THE USA STYLE AND ARE ON MOST HYDRAULICS
THAT ARE FROM CHINA.
CHINA FITTINGS: HYDRAULIC RAM END PART NO (10376) 1/4NPT HYDRAULIC HOSE END (10377) 1/4NPT

A HYDRAULIC PRESSURE BUSH TO REDUCE TO 1/4 NPT MALE THREAD USE PART NO ( T9791) OR (30-PRB-0604NSS)
FOR A MALE 3/8 NPT & 1/4 NPT FEMALE THREAD USE PART NO (T9790)
