INVERTER WELDER MIG-STICK-TIG 240V
Click on image for larger photo
Product Code: 659200BUNDLE

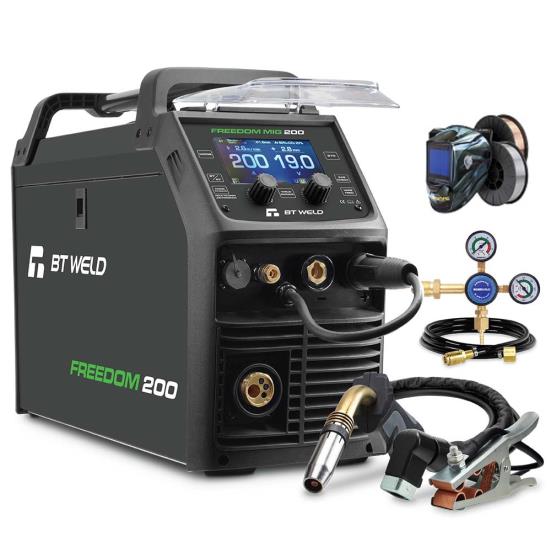

BT WELD FREEDOM 200 PFC 240V WELDER
VERSATILE, COMPACT MULTI-PROCESS
INVERTER WELDER, UP TO 200A OF POWER
Border Image Border Image
Shop Price: $2,199.00
Web Price: $2,199.00  inc tax
Shipping charges may vary and are subject to change based on product dimensions and destination.

Availability: In Stock
Quantity:
Weight: 22 KG
Border Image Border Image
FREEDOM 200 PFC MIG SYNERGIC / MANUAL INVERTER WELDER 240V BT WELD 659200

DESCRIPTION:

- DUTY CYCLE: 20% @ 200A
- GENERATOR: 12.5 KVA
- PLATE THICKNESS: MAX. 12MM
- MATERIAL: MILD STEEL, STAINLESS STEEL, BRASS/COPPER, ALUMINIUM (MIG ONLY)

FEATURES:

- 200A OUTPUT
- 5" COLOUR LCD SCREEN
- 3-IN-1 PROCESSES
- 2T/4T/SPOT WELD
- SUITS D100 & D200 SPOOLS
- WELD PARAMETER STORAGE
- PFC

PROCESS:

- MIG SYNERGIC/MANUAL
- MIG GAS/GASLESS
- TIG LIFT DC
- STICK (MMA)

SPECIFICATIONS:

- PRIMARY INPUT POWER: 1 PHASE 240V 50-60 HZ +/-15%
- DUTY CYCLE @ 40°C: 10MIN 60% @200A
- 100% @155A


EFFECTIVE CURRENT (A): 19.6 (MIG) 15.1 (TIG) 22.3 (MMA)
RATED INPUT CURRENT (A): 25.3 (MIG) 19.5 (TIG) 28.8 (MMA)
RATED INPUT POWER (KW): 6.2 (MIG) 4.9 (TIG) 7.0 (MMA)
WELDING CURRENT RANGE (A): 30-200 (MIG) 10-200 (TIG) 10-200 (MMA)
WELDING VOLTAGE RANGE (V): 15.5-24 (MIG) 10.4-18 (TIG) 20.4-28 (MMA)
I MAX (A): 25.3 (MIG) 19.5 (TIG) 28.8 (MMA)
I EFF (A): 19.6 (MIG) 15.1 (TIG) 22.3 (MMA)
WIRE DIAMETER RANGE: 0.8 - 1.6MM
ELECTRODE DIAMETER RANGE: 2.5 - 5MM
PROTECTION/INSULATION CLASS: IP21S/S
POWER FACTOR/EFFICIENCY: 0.99/85%
THERMAL OVERLOAD: YES
DIMENSIONS: L 61 X W 24 X H 42 CM
WEIGHT: 19.4 KG
WARRANTY: 3 YEAR MANUFACTURER'S WARRANTY

STANDARD PACKAGE INCLUSIONS:

- BT FREEDOM 200 INVERTER WELDER 240V
- ERGON BZ24 MIG TORCH 4MT
- TWIST LOCK ELECTRODE HOLDER 3M
- EARTH CLAMP 200AMP 3MT
- ARGON TWIN GAUGE REGULATOR
- QUICK CONNECT GAS HOSE 2MT
- DRIVE ROLLER 0.8/0.9MM V GROOVE (FITTED)
- DRIVE ROLLER 0.8/0.9MM KNURLED GROOVE SPARE
