Product Code:
WMD/200A

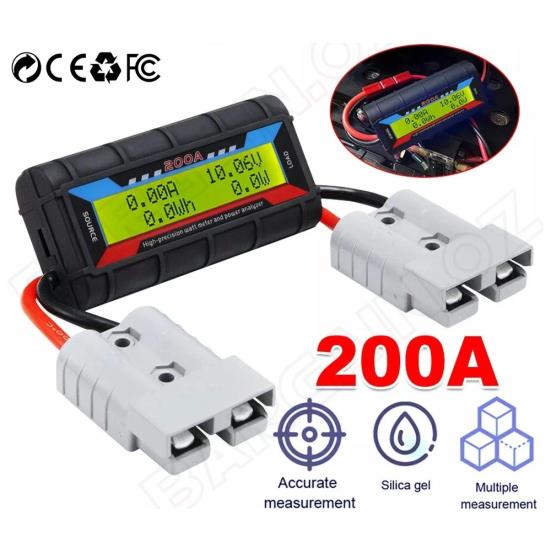

DIGITAL LCD 200 AMP WATT METER FITTED
WITH ANDERSON PLUGS POWER ANALYSER
FOR SOLAR 4 TO 48 VOLT ALL BATTRIES
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
Features:
- Watt Meter and Power Analyzer 150 Amps
- Color: Black
- Weight: 88g
- Dimensions: 85 x 42 x 25mm
- Material: Rubber Paint
- Operates from 4.8v to 60v
Measure:
- Can measure down to 0v with optional auxiliary (great for stress-testing batteries)
- Measures 0 to 200A with a resolution of 0.01A (50 Amp connectors for continuous ? up to 200A for short peak bursts only)
- Measures 0 to 60V with a resolution of 0.01V
- Measures 0 to 6554W with a resolution of 0.01W
- Measures 0 to 65Ah with a resolution of 0.001Ah
- 2.4" LCD display
- Works on 4, 6, 12, 24, 36, and 48 volt battery bank systems
- Extremely low power consumption of 7 mA
- Digital LCD LIGHT UP screen gives clear crisp number readings
- Handles up to 150 amps intermittently and 75 amps continuous duty (48 Volts)
- Microprocessor controlled produces extremely precise and accurate readings.
- Amp Hours (Ah) ? Total charge Ah delivered from source to load
- Amp Peak (Ap) ? Highest amp value delivered (typically startup cycle for inverters, compressors, fridges etc)
- Amp (A) ? Amps being delivered at that point in time
- Voltage ? Source voltage, and minimum Source voltage. Good for measuring voltage at lowest point of charge (eg minimum overnight voltage of car fridge battery)
- Power (Watts) ? Peak watts, Watts being delivered at that point in time
- The meter can be ?turned around? to measure charge going back in to the battery during a charging cycle. - In this instance, the charger (DCDC, Solar, Mains Battery Charger) is connected to Source, and the battery is connected to ?Load?.
Charging Cycle Readings:
- Amp Hours (Ah) ? Total charge delivered to the battery
- Amp Peak (Ap) ? Highest charge delivered to the battery (Bulk charging)
- Voltage ? Point in time voltage from the Charger (charger is not over or under-charging)
|
