Product Code:
SPMC4/KIT
SOLAR PANEL CONECTOR MC4 TOOL KIT10 PAIR
IP67 CONECTOR FOR 2.5 TO 6.0MM SOLAR
PANEL FITTINGS MC4 CRIMP TOOL 220MM LONG
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
Professional-Grade MC4 Crimper and Connector Kit for Reliable Solar Installations
Tired of unreliable solar connections? Our 10 Pairs MC4 Solar Crimper Tool Kit is your ultimate solution for creating secure, waterproof, and time-saving connections. This all-in-one kit is engineered for solar installers, DIY enthusiasts, electricians, and caravan owners across Australia, making solar panel installation, off-grid system setups, and RV solar projects simpler and safer than ever.
Key Features & Benefits:

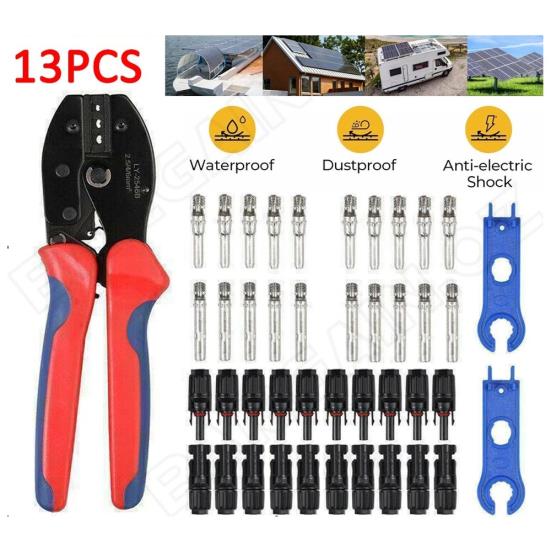

Complete & Convenient Kit: Get started immediately with a full kit containing a professional MC4 wire crimper, 10 pairs of MC4 solar connectors, and 2 dedicated MC4 spanners. No need to source items separately ? perfect for both professional and DIY solar use.
Secure & Reliable Crimping: Achieve a perfect crimp with our heavy-duty PV crimping tool, specifically calibrated for 2.5/4.0/6.0mm² PV cables. Ensures low contact resistance (<0.2 m?) and a stable connection under high pressure, eliminating the worry of loose wires or power loss.
Superior Weather Protection: The IP67 waterproof and UV resistant connectors are built to withstand the harsh Australian climate. They provide a waterproof connection that is corrosion resistant, protecting your system from rain, dust, and sun damage for years to come. The anti-spark design adds an extra layer of safety during connection.
Robust & Long-Lasting Build: The crimper is forged from durable tool steel, while the connectors use high-grade insulation material (PPO+PA) with a Flame Class UL94-VO rating. Designed for a wide temperature range (-40°C ~ +90°C) and a withstanding voltage of 1000V DC, this kit is a durable investment.
Wide Application: An essential tool for solar panel installation, marine wiring, and powering your camper or caravan. Whether you're a solar installer on a job site or a handyman working on a home project, this kit delivers professional results.
Technical Specifications:
Crimping Capacity: 2.5/4.0/6.0mm² (Compatible with AWG14, AWG12, AWG10)
Rated Current: 30A (for 4/6mm²), 22A (for 2.5mm²)
Withstanding Voltage: 1000V DC
Protection Degree: IP67 (Connectors), IP2X (Tool)
Contact Resistance: ?0.2 m?
Temperature Range: -40°C ~ +90°C
Flame Class: UL94-VO / UL94-5A
Tool Length: 220mm (Crimper)
|
