CRANE UTE 12 VOLT 800KG 1800MM MAX LIFT

 New and improved website Freight Free

Enquiry

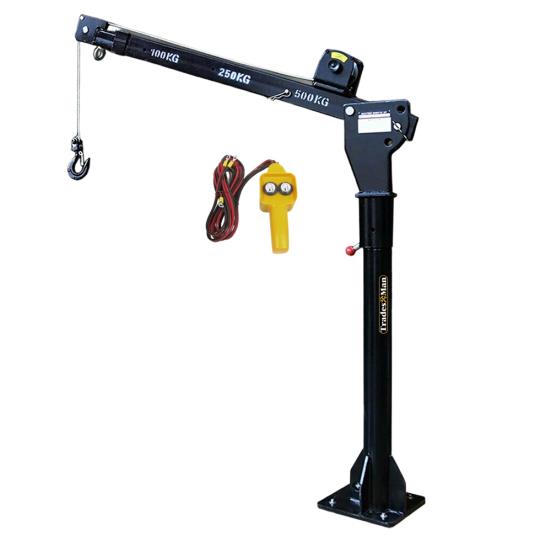

CRANE UTE 12 VOLT 800KG 1800MM MAX LIFT
Click on image for larger photo
Product Code: 11249-1

CRANE UTE 12VOLT 800KG 1800MM MAX REMOTE
HAND PIECE. LINE LIFTING CAPACITY 500KG
SINGLE LINE 800KG DOUBLE TRAY BOLT MOUNT
Border Image Border Image
Shop Price: $699.00
Web Price: $699.00  inc tax
Shipping charges may vary and are subject to change based on product dimensions and destination.

Availability: On Order
Quantity:
Weight: 67 KG
Border Image Border Image
CRANE UTE 12 VOLT 800KG 1800MM MAX LIFT

- COMPACT DESIGN, FOLDS AWAY WHEN NOT IN USE
- EASILY INSTALLED, ON SITE OR BY A VEHICLE BODY BUILDER

- SINGLE LINE LIFTING CAPACITY (MAXIMUM) 500KG
- DOUBLE-LINE LIFTING CAPACITY (MAXIMUM) 800KG

- LIFTING HEIGHT MAXIMUM STANDARD (BASE TO HOOK) : 1940MM
- REACH MAXIMUM (FROM CENTER OF ROTATION): 1490MM
- ROTATION (CONTINUOUS) WITH BRAKE: 360° MANUAL
- LIFTING CABLE: 4.8MM X 4.5 METRE, 1 PIECE (FOR SINGLE-LINE LIFTING)
- LIFTING CABLE: 4.8MM X 5.5 METRE, 1 PIECE (FOR DOUBLE-LINE LIFTING)
- LINE SPEED WITH NO LOAD: 3.6M/MIN SINGLE LINE
- POWER REQUIREMENTS: 12 VOLTS DC 125 AMPS

- SWITCH CABLE: 4.2 METRE
- MOUNTING BASE: 250 X 250 X 18MM
- MOUNTING BOLT HOLE PATTERN: 170X170MM
- FINISH: POWDER COATED

FREIGHT DIMENSIONS- (L)1380MM X (W) 380MM X (H) 350MM
