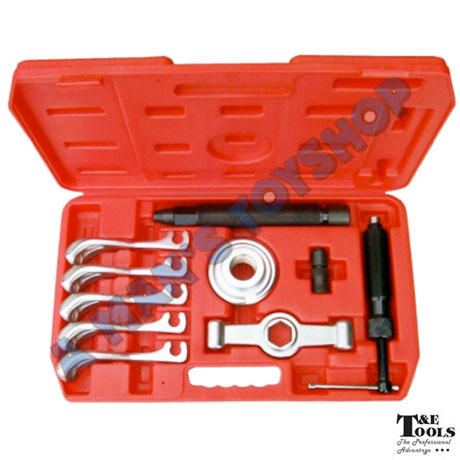

REAR DRUM TAPER HUB PULLER 5 LEG KIT
Click on image for larger photo
Product Code: J8250

REAR DRUM TAPER HUB PULLER 5 LEG KIT
CENTRE BOLT SCREW & 10 TON HYD RAM
SPREAD 200MM REMOVE TAPERED REAR DRUMS
Border Image Border Image
Shop Price: $449.00
Web Price: $449.00  inc tax

Availability: In Stock
Quantity:
Weight: 6 KG

Border Image Border Image
NOTE: THREAD MUST BE GREASED BEFOR USE

HYDRAULIC 5 LEG PULLER WITH CENTRE BOLT FORCING SCREW FOR IMPACT ACTION PLUS A 10 TON HYDRAULIC RAM WITH EXTENSION PIECES. THIS RUGGED H/DUTY PULLER WILL REMOVE WHEEL HUBS MOUNTED ON TAPERED AXLES AND PRESS FIT REAR BRAKE DRUMS.(MOPAR CARS & TRUCKS)

THIS PULLER WILL FIT ALL DESOTOS,DODGES,PLYMOUTHS,IMPERIALS,CHRYSLERS FROM 1928 TO 1970 CARS

THE LEGS CAN BE ADJUSTED TO AN 8" (200MM) DIAMETER BOLT CIRCLE. MADE FROM ALLOY STEEL, DROP FORGED, THIS TOOL CAN HANDLE THE TOUGHEST OF JOBS.
SUPPLIED WITH STRIKING HEAD WRENCH TO BE USED WITH HEAVY CLUB HAMMERRAM HAS 12MM TRAVEL

- MAXIMUM CIRCLE SPREAD: 8" (200MM).
- CENTRE SCREW DIAMETER: 1.3/8" (35MM).
- HYDRAULIC RAM: 10 TON.

AVAILABLE WITH 3, 4 OR 5 LEGS. HUB CAPACITY 203MM (8") PITCH CIRCLE DIAMETER.

VARIABLE STUD TYPE-MECHANICAL SCREW WITH FLOATING PLUNGER HEAVY DUTY HAMMER TYPE HANDLE. A SHOCK ACTION TOOL.

1 - HYDRAULIC RAM 10" (L)
1 - EXTENSION RAM 2" (L) X 1" (DIA)
1 - CENTERING ADAPTOR
5 - HUB PULLER LEG
1 - HUB PULLER BODY 4"
1 - HAMMER HANDLE 8"
1 - FORCING SCREW
