Product Code:
TRAIL12X7FBTIP
TRAILER GAL 12X7 FLAT BED TIPPER 600MM
CAGE 4 WHEEL 10" ELECTRIC BRAKES,SLIDE
IN RAMPS -215R15 WHEELS, ATM 3500KG
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|

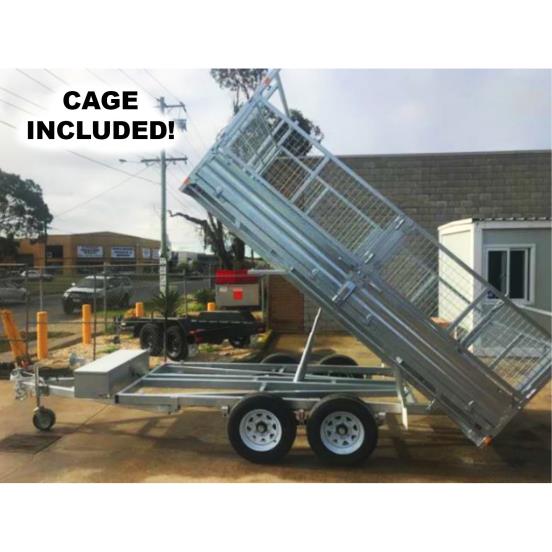

12X7 FLATBED HYDRAULIC TIPPER TRAILER, W/ 600MM CAGE & 2000MM RAMPS
DESCRIPTION:
- 150 X 50 X 4MM RHS DRAWBAR, 1800MM LONG, W/3.5T HAMMERLOCK ATTACHMENTS, 2 X 13MM SAFETY CHAINS (STAMP AS4177-35)
- 100 X 50 X 5MM RHS LOWER CHASSIS FRAME,
- 100 X 50 X 4MM UPPER CHASSIS FRAME,
- 70 X 50 X 3MM RHS CROSSBAR,
- 2.5MM CHECKER PLATE FLOOR,
- 2.5MM CHECKER PLATE MUDGUARD (BOLTED)
- 300MM HIGH SIDES, FOLD DOWN TYPE, REMOVABLE, 1.5MM FLAT PLATE STEEL W/FOLDING DESIGN
- 1200MM HEADBOARD
- TAILGATES W/ FOLDING FLAT PLATE, REMOVABLE
- 50 X 50MM SOLID SQUARE AXLE SHAFTS, WITH 12 INCH ELECTRIC DRUM BRAKE ON 4 WHEELS, 6-STUDS
- 7 LEAF SPRING, EA. 60 X 8MM, ROCK ROLLER SUSPENSION W/ GREASABLE SHACKLE BOLTS
- 15 INCH LIGHT TRUCK TYRE 215/70R15 WITH PAINTED RIM 6-STUDS (DOT & EMARK)
- 10 INCH TOP WINDS JOCKEY WHEEL
- 50MM BALL AU STANDARD ELECTRIC-BRAKE COUPLING
- 5-STAGE HYDRAULIC RAM W/LOADING CAPACITY: 5 TON, 12V PUMP WITH 17L OIL TANK & WIRING REMOTE CONTROLLER
- 2.5MM CHECKER PLATE TOOLBOX FOR STORING HYDRAULIC POWER UNIT, LOCKABLE
- UNDERNEATH SLIDE RAMPS, 2000MM LONG, 65 X 40MM CHANNEL FRAME, ANGLE STEEL WALKWAY
- LED LIGHTING SETS WITH 7 PIN PLUG (E-MARK) & WIRE
- COMES WITH 600MM HIGH CAGE, 40 X 40 X 1.5MM FRAME, 70 X 50 X 4MM MESH, W/ANTI-RATTLE LATCHES
ATM.. 3500KG
TARE .. 1280KG
CARRYING.. 2220KG
TYRE.RIM. 215R-15
|
