BOTTLE JACK 18.5TON AIR 265MM MIN LIFT

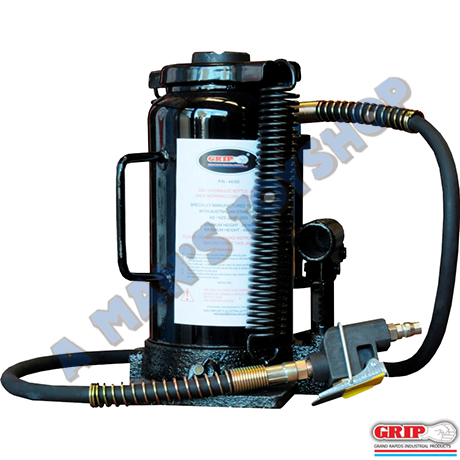

Click on image for larger photo
Product Code: A44255

BOTTLE JACK 18.5TON AIR 265MM MIN LIFT
510MM MAX LIFTAIR OPERATED BOTTLE JACK D
OPERATION 145MM ADJUSTABLE SCREW 60MM.
Border Image Border Image
Shop Price: $339.00
Web Price: $339.00  inc tax

Availability: In Stock
Quantity:
Weight: 19 KG
Border Image Border Image
18.5 TON AIR HYDRAULIC BOTTLE JACK

- MINIMUM HEIGHT: 260MM
- MAXIMUM HEIGHT: 510MM
- HYDRAULIC LIFT: 160MM
- ADJUSTABLE HEIGHT: 80MM
- WORKING PRESSURE: 90-120PSI
- NITTO AIR INLET WITH 1/4" HOSE
- HOSE FITTINGS NOT INCLUDED
-BASE SIZE 223MM X 133MM

SAFETY PRECAUTIONS -

WARNING: FAILURE TO HEED THE FOLLOWING WARNINGS CAN RESULT IN PERSONAL INJURY AND/OR EQUIPMENT DAMAGE.THESE WARNINGS CANNOT COVER EVERY SITUATION, SO HAVE SAFETY FOREMOST IN YOUR MIND WHEN SETTING UP A JOB.

- READ, UNDERSTAND AND FOLLOW THE OPERATING INSTURCTIONS AND THE ANSI B30.1 AND ASME PALD-1 SAFETY STANDARDS FOR JACKS. IF THE OPERATOR CANNOT READ ENGLISH, OPERATING INSTRUCTIONS AND SAFETY PRECAUTIONS MUST BE READ AND DISCUSSED IN THE OPERATOR'S NATIVE LANGUAGE.
- WEAR EYE PROTECTION THAT MEETS THE REQUIREMENTS OF ANSI Z87.1 AND OSHA.
- INSPECT THE JACK BEFORE EACH USE; DO NOT USE THE JACK IF IT IS DAMAGED, ALTERED, OR IN POOR CONIDITION.
- TO PREVENT TIPPING, SET UP THE JACK ON A HARD, LEVEL SURFACE. SET VEHICLE PARKING BRAKE AND BLOCK TYRES.
- THE LOAD MUST NOT EXCEED THE RATED LIFTING CAPACITY OF THE JACK. LIFT ONLY DEAD WEIGHT.
- CENTER THE LOAD ON THE JACK SADDLE, BECAUSE OFF-CENTRE LOADS CAN DAMAGE SEALS AND CAUSE HYDRAULIC FAILURE.
- USE THE JACK FOR LIFTING PURPOSES ONLY. THIS JACK IS DESIGNED TO LIFT LOADS, NOT SUPPORT LOADS. IMMEDIATELY SUPPORT A LIFTED LOAD WITH JACK STANDS.
- STAY CLEAR OF LIFTED LOADS.
- USE ONLY APPROVED HYDRAULIC FLUID, SUCH AS CHEVRON AW HYDRAULIC OIL MV OR EQUIVALENT.
- THE JACK SHOULD BE USED ON HARD, LEVEL SURFACES
- THE WHEELS OF THE VEHICLE TO BE CHOCKED
- DO NOT PUT A PORTION OF YOUR BODY UNDER A VEHICLE SUPPORTED BY A JACK
- NO PERSON SHOULD REMAIN IN A VEHICLE THAT IS BEING JACKED
- DO NOT EXCEED THE WORKING LOAD LIMIT

SAFETY PRECAUTIONS -

WARNING: FAILURE TO HEED THE FOLLOWING WARNINGS CAN RESULT IN PERSONAL INJURY AND/OR EQUIPMENT DAMAGE.THESE WARNINGS CANNOT COVER EVERY SITUATION, SO HAVE SAFETY FOREMOST IN YOUR MIND WHEN SETTING UP A JOB.

- READ, UNDERSTAND AND FOLLOW THE OPERATING INSTRUCTIONS AND THE ANSI B30.1 AND ASME PALD-1 SAFETY STANDARDS FOR JACKS. IF THE OPERATOR CANNOT READ ENGLISH, OPERATING INSTRUCTIONS AND SAFETY PRECAUTIONS MUST BE READ AND DISCUSSED IN THE OPERATOR'S NATIVE LANGUAGE.
- WEAR EYE PROTECTION THAT MEETS THE REQUIREMENTS OF ANSI Z87.1 AND OSHA.
- INSPECT THE JACK BEFORE EACH USE; DO NOT USE THE JACK IF IT IS DAMAGED, ALTERED, OR IN POOR CONIDITION.
- TO PREVENT TIPPING, SET UP THE JACK ON A HARD, LEVEL SURFACE. SET VEHICLE PARKING BRAKE AND BLOCK TYRES.
- THE LOAD MUST NOT EXCEED THE RATED LIFTING CAPACITY OF THE JACK. LIFT ONLY DEAD WEIGHT.
- CENTER THE LOAD ON THE JACK SADDLE, BECAUSE OFF-CENTRE LOADS CAN DAMAGE SEALS AND CAUSE HYDRAULIC FAILURE.
- USE THE JACK FOR LIFTING PURPOSES ONLY. THIS JACK IS DESIGNED TO LIFT LOADS, NOT SUPPORT LOADS. IMMEDIATELY SUPPORT A LIFTED LOAD WITH JACK STANDS.
- STAY CLEAR OF LIFTED LOADS.
- USE ONLY APPROVED HYDRAULIC FLUID, SUCH AS CHEVRON AW HYDRAULIC OIL MV OR EQUIVALENT.

OPERATING INSTRUCTIONS -

TO RAISE THE JACK, USE NARROW END OF JACK HANDLE TO TIGHTEN RELEASE VALVE CLOCKWISE (CW). INSERT HANDLE INTO SOCKET AND OPERATE PUMP. TO LOWER THE JACK, SLOWLY OPEN THE RELEASE VALVE KNOB BY TURNING IT COUNTERCLOCKWISE (CCW).
