HYDRAULIC 5 TON PULL BACK 130MM STROKE

 New and improved website Freight Free

Enquiry
HYDRAULIC 5 TON PULL BACK 130MM STROKE
Click on image for larger photo
Product Code: 11201-7

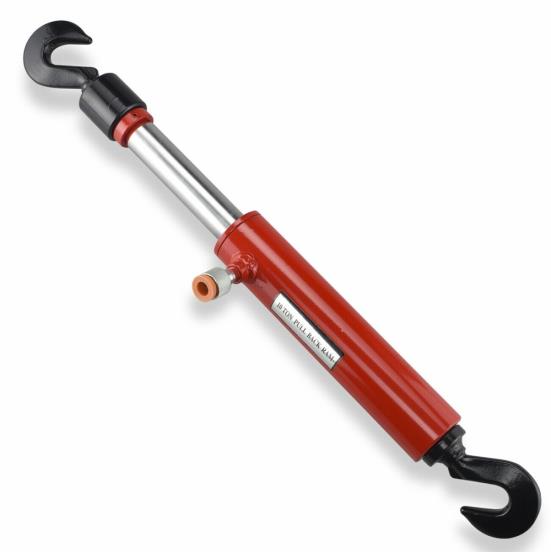

HYDRAULIC 5 TON PULL BACK 130MM STROKE.
MINIMUM LENGTH 540MM. MAXIMUM LENGTH:
670MM. PRESSURE (68MPA) 10000 PSI.
Border Image Border Image
Shop Price: $119.00
Web Price: $115.43  inc tax

Availability: In Stock
Quantity:
Weight: 6 KG
Border Image Border Image
HYDRAULIC PULLER 5 TONNE 130MM STROKE

PRODUCT FEATURES
* HYDRAULIC PULLER 540MM MINIMUM LENGTH MAXIMUM LENGTH 670MM
* HAS 2X 8MM CLOSED CHAIN HOOKS TO SUIT 8MM T70 LOAD CHAINS FOR PULLING
* FOR USE WITH AUTO BODY REPAIR KITS 10 OR 20 TON HYDRAULIC POWER UNITS
* ASAIN FITTINGS

PRODUCT SPECIFICATIONS:
* CAPACITY: 5 TON
* STROKE: 130MM
* MIN HEIGHT: 520MM
* MAX HEIGHT: 650MM
* NOTE: WITH RETURN SPRING
* 2X ONLY 8MM CLOSED HOOKS MOUNTED ON EACH END

RAMS WITH USA OR OTC STYLE COUPLING 10000 PSI PRESSURE THREAD 3/8NPT

NOTE: OTC USA HYDRAULIC FITTINGS FEMALE FITTING ON HYDRAULIC RAM PART NO (9796) THE OTC USA FEMALE FITTING
TO SUIT (9796) ON THE END THE HYDRAULIC HOSE IS PART NO (9798) IF MALE & FEMALE USA FITTINGS ARE
REQUIRED PART NO IS (9796/9798)

RAMS WITH ASAIN FITTINGS 10000 PSI PRESSURE THREAD 1/4 NPT

NOTE: ASAIN FITTINGS ARE SMALLER SIZE THAN THE USA STYLE AND ARE ON MOST HYDRAULICS
THAT ARE FROM CHINA.
CHINA FITTINGS: HYDRAULIC RAM END PART NO (10376) 1/4NPT HYDRAULIC HOSE END (10377) 1/4NPT

A HYDRAULIC PRESSURE BUSH TO REDUCE TO 1/4 NPT MALE THREAD USE PART NO ( T9791) OR (30-PRB-0604NSS)
FOR A MALE 3/8 NPT & 1/4 NPT FEMALE THREAD USE PART NO (T9790)

View Complete Range:
HYDRAULICS - AGRI > PORTA POWER PULLBACK
