Product Code:
T20DES

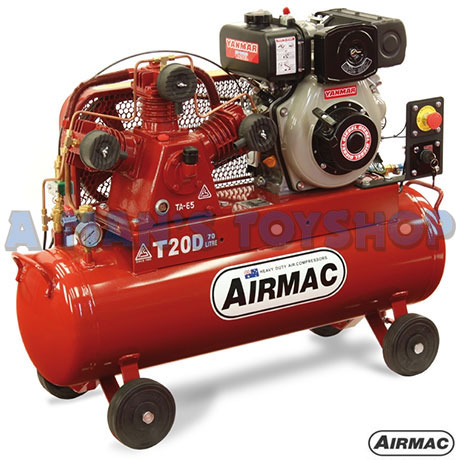

4.7HP YANMAR *MINE SPEC* EMERGENCY STOP*
KEY START/STOP. 70L TANK FUSHENG PUMP
DIESEL 4.7HP YANMAR - PUMP SPEED 1025RPM
|
|
|
|
|
Please enter a valid quantity |
|
|
|
|
 |
|
|
|
- 70 LITRE TANK
- 96DB NOISE LEVEL
- 1024RPM PUMP
- 3 CYLINDER
--------------------------------------------------------------------------------------------------------------------------
FEATURES:
- GENUINE FUSHENG RECIPROCATING AIR COMPRESSOR PUMP. LOW SPEED, SINGLE STAGE, FULL CAST IRON CONSTRUCTION WITH A WORLDWIDE REPUTATION FOR OUTSTANDING PERFORMANCE AND RELIABILITY. WELL PROVEN IN AUSTRALIA FOR MORE THAN 25 YEARS.
- SUPERIOR PUMP DESIGN WITH A HIGH STRENGTH FORGED STEEL CRANKSHAFT, LOW FRICTION ROLLER MAIN BEARINGS, EXTRA LARGE OIL RESERVOIR, LONG LIFE PISTON RINGS, PRECISION MACHINED CYLINDERS, DEEP DIRECTIONAL COOLING FINS, ROBUST PLATE-TYPE INLET AND EXHAUST VALVES, AND LOW NOISE AIR INTAKES WITH REPLACEABLE FILTER ELEMENTS.
- GENUINE YANMAR AIR COOLED DIRECT INJECTION DIESEL ENGINE FITTED WITH AN AUTO-IDLE THROTTLE CONTROLLER, EASY START UNLOADING VALVE, AND AUTO-RETURN DECOMPRESSOR.
- EXTENDED SERVICE LIFE V-BELT DRIVE FULLY ENCLOSED BY AN IMPACT RESISTANT METAL SAFETY GUARD DESIGNED FOR EASY MAINTENANCE ACCESS AND HIGH FLOW-THROUGH COOLING. EXTRA THICK STEEL BASEPLATE AND CLAMPING PLATE TOGETHER ENSURE OPTIMUM ENGINE MOUNTING ALIGNMENT AND RIGIDITY.
- OVERSIZED AIR RECEIVER TANK FOR MAXIMUM AIR/ENERGY STORAGE. ABRASIVE BLAST CLEANED PRIOR TO APPLICATION OF A THREE STAGE PAINT SYSTEM FOR LONG LASTING CORROSION PROTECTION. MOUNTED ON PUNCTURE RESISTANT SOLID RUBBER WHEELS OR STATIONARY RUBBER FEET FOR EFFECTIVE VIBRATION ISOLATION.
-PREMIUM GRADE FASTENERS, FITTINGS AND PIPING USED THROUGHOUT. HIGH FLOW, LOW BACK PRESSURE BRASS CHECK VALVE. TAMPER-RESISTANT FIXED PRESSURE DIFFERENTIAL PILOT VALVE.
- FULLY COMPLIANT WITH AUSTRALIAN SAFETY STANDARDS AND REGULATIONS FOR INDUSTRIAL WORKPLACE USE.
- 2-YEAR PARTS AND FACTORY LABOUR WARRANTY SUPPLEMENTED BY AN AUSTRALIA-WIDE DEALER NETWORK OFFERING SALES, SERVICE AND GENUINE SPARE PARTS BACKUP.
SPECIFICATIONS:
PUMP DISPLACEMENT: 17.3 CFM, 489 L/MIN
FREE AIR DELIVERY: 11.3 CFM, 319 L/MIN
PUMP MODEL: TA-65
NO. OF CYL: 3
PUMP RPM: 1024
ENGINE POWER: 4.7HP
ELECTRIC START: YES
TANK VOLUME: 70L
NOISE LEVEL: 96DB
OUTLET SIZE: 1/4" BSP
WEIGHT: 110KG
DIMENSIONS: 112CM L X 87CM H X 40CM W
|
